Steel milling cutter disc
SMP indexable three-face milling cutter (bayonet type)
  • SMP indexable three-face milling cutter (bayonet type)
SMP indexable three-face milling cutter (bayonet type)

The blade is crafted from premium 42CrMo material and undergoes a dual quenching process,
achieving a tool hardness of HRC 55°. This enhances the blade's toughness and rigidity,
effectively suppressing tool vibration in machining centers, thereby protecting machine tools and reducing processing costs.

The number of cutting edges is scientifically designed based on machining requirements,
ensuring smooth and efficient chip evacuation.
This reduces tool wear or breakage caused by poor chip removal during processing.

The tool design incorporates an enlarged mandrel. During static grinding,
the distance between the center pin axis and the grinding wheel remains constant,
ensuring higher concentricity and roundness of the tool shank.

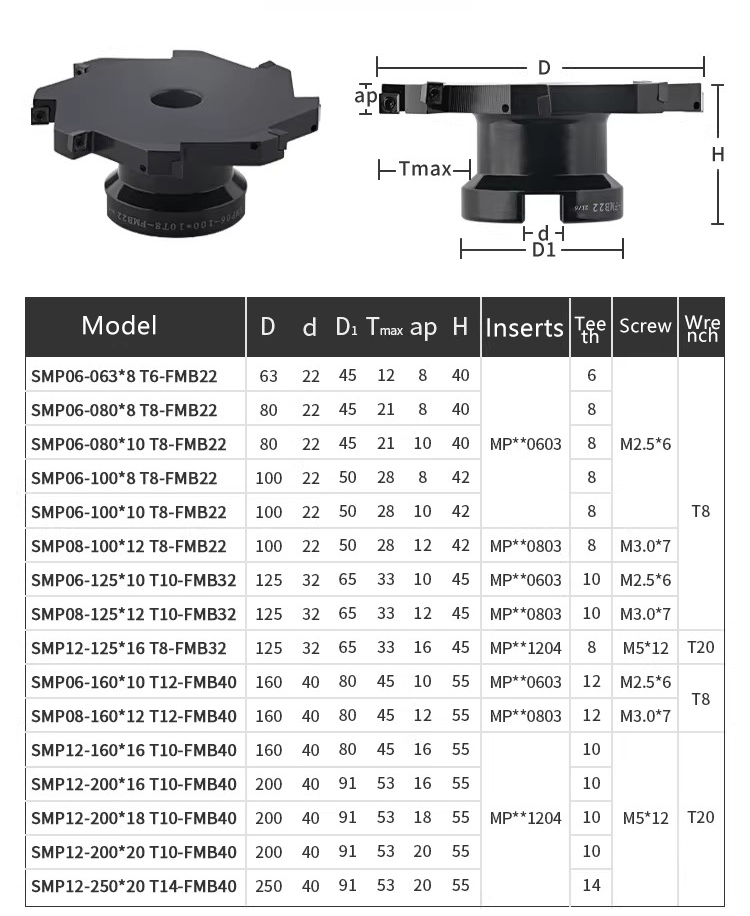

Product Name: Three-Flute Milling Cutter

Number of Cutting Edges: 6T/8T/10T/12T/14T

Material: 42CrMnTi

Screw Size: M2.5*6 M3*7 M5*12

Compatible With: MPHT Series
